Quality Control Software

 Quality Control Software

Quality Control Software

Features

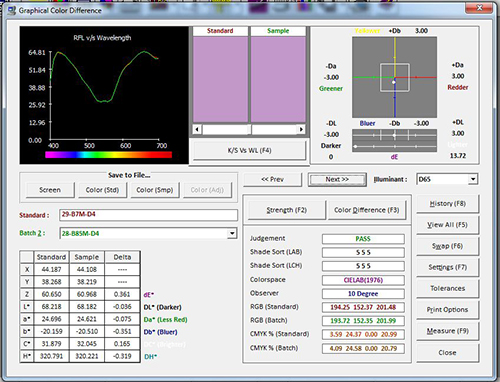

Color Difference Analysis
  • Reflectance/Transmission Profiles
  • Color on screen
  • Color space diagram
  • Color Difference values
  • Statistical analysis
Color Difference Spaces
  • CIE L*a*b*
  • Hunterlab
  • FMC II
  • ANLAB 50
  • CMC (1:1)
  • CMC (2:1)
  • CIE 94
  • CIE 2000
  • BFD

Illuminants
  • A
  • D 65
  • D 50
  • D 75
  • C
  • F3
  • CWF
  • Tl 84
  • UL 30
  • Horizon




Strength Analysis
  • Residual color difference
  • Reducing strength of TiO2
  • Dyestuff Strengths
  • Pigment Strengths Analysis
  • Standard, Sample and Adjusted sample profiles
  • Color on screen
  • Strength difference of Standard and Sample
  • Strength analysis by Integrated Wavelength, Maximum Wavelength and User selected Wavelength
  • Option to calculate strength using Saunderson correction



Indices

Whiteness, Yellowness and Brightness Indices can be quantified.



Whiteness Index
  • Stephensen
  • Harrison
  • Berger
  • ASTM E313
  • Stensby
  • Hunter
  • CIE
  • Ganz




Yellowness Index
  • ASTM D1925
  • ASTM E313




Brightness Index
  • TAPPI 452
  • ISO 2470




Metamerism Index
Food Color Index
  • Tomato Color Index
  • Citrus Redness Index
  • Citrus Yellow Index
  • Equivalent Orange Juice Score



Sugar Whiteness Index

ICUMSA 420 Sugar Score. (International Commission for Uniform Methods in Sugar Analysis)




Paper Indices
  • R(X), R(Y), R(Z)
  • Scattering Power
  • Scattering Co-efficient
  • Absorption Power
  • Absorption Co-efficient



Gardner Scale
Gray Scales
  • AATCC
  • ISO 105



Staining Scale
  • AATCC
  • ISO 105



Opacity Quantification

The hiding power in terms of Opacity can be quantified.

  • ISO Opacity
  • Tappi Opacity
  • R (O) Opacity



Fluorescence Quantification
  • O B A Fluroscence component is calculated by measuring sample with UV light & without UV light
  • Chromatic Fluroscence component is calculated by measuring sample with visible cutofffilters ( 420nm or 465nm)

For more information please click on Spectrophotometer Flouro



QUALITY CONTROL PACKAGE



1. Creating Your Own Standard Library
  • Store your own standards to eliminate the need of comparison
  • Comparison with any Physical standard
  • Retrieve for any future comparison
  • Update, Rename, delete, swap and list options



2. Analysing Incoming Colorant Raw Material
  • Colorant strength (color yield) analysis
  • Color difference analysis
  • Reducing strength analysis of Titanium Dioxide



3. Checking of Substrate / Base
  • Measurement of whiteness
  • Checking of undesirable yellowness



4. Checking of Outgoing Finished Product
  • Color difference analysis against an accepted standard
  • Whiteness/ Yellowness measurement in case of white finished product
  • Predicting the effect of various illuminants (i.e. Detection of Metamerism)



5. Quality Assurance Purpose
  • Study of fastness of dyestuffs / dispersing properties of pigments
  • Study of various stages of coloring
  • Study of various treatments on the finished product
  • Study of effect of Optical Brighteners
  • Study of new colorant raw material
  • Study of effect of weathering
